GM INOX S.R.L. – GAVIRATE – External turning and internal  boring  of pipes and vertical centricast items, complete construction of assembled rolls,  production of items for wind energy generators, centrifugal decanters, reduction gears, drive shafts, mills, general mechanical components.





- No.5 horizontal lathes with display ,maximum capacity up to 700mm OD



up to 700mm OD
parco macchine - con torni paralleli

- No.1 horizontal CNC machine – mod. GF/SC 12 GIANA 610x6000, maximum capabilities:

max OD with one side clamping 1220mm
max OD on full length 870mm
distance between centers 6000mm
mandrel power: 60 KW
no.4+1 sliding guides

parco macchine - con tornio parallelo a CNC - mod. GF/SC 12 GIANA 610x6000
- No.1 horizontal CNC machine – mod. GF/SC GIANA 760x5000 , maximum capabilities:

max OD with one side clamping 1520mm
max OD on full length 1170mm
distance between centers 5000mm
mandrel power 60 KW
no. 4+1 sliding guides
parco macchine - con tornio parallelo a CNC - mod. GF/SC 12 GIANA 760x5000

- No.1 horizontal CNC machine – mod. GF/SC GIANA 760x8000, maximum capabilities:

max OD with one side clamping 1520mm
max OD on full length 1170mm
distance between centers 8000mm
mandrel power 60 KW
no. 4+1 sliding guides
parco macchine - con tornio parallelo a CNC - mod. GF/SC GIANA 760 x 8000

No.1 horizontal CNC machine – mod. HD1450 TACCHI 725x2000, maximum capabilities:



max OD with one side clamping 1450mm
max OD on full length 1000mm
distance between centers 2000mm
mandrel power 68.5 KW
no. 2+1 sliding guides


Tornio Tacchi

No.1 CNC raking bench lathe – mod. 720 GIANA 430x3500, maximum capabilities:

center height on sliding guide 430 mm
distance between centers 3500 mm
max piece diameter on transversal sliding guides 720 mm
mandrel hole 155mm
mandrel power 37 KW
power of control unit for motor driver components 10 KW
capacity of self-centering chuck 250 mm

parco macchine - con tornio con banco inclinato a CNC - mod. 720 GIANA 430X3500

No.1 vertical CNC lathe – mod. VK12 MORANDO 1600x800, maximum capabilities:


platform diameter 1200mm
max machined OD 1400mm
max machined length 800mm
Ram 200x200x800
Mandrel power 50 KW

Tornio verticale

No.1 CNC milling machine GIANA
Longitudinal travel distance 3200 mm
vertical travel distance 1250 mm
transversal travel distance 900 mm

Fresatrice GIANA

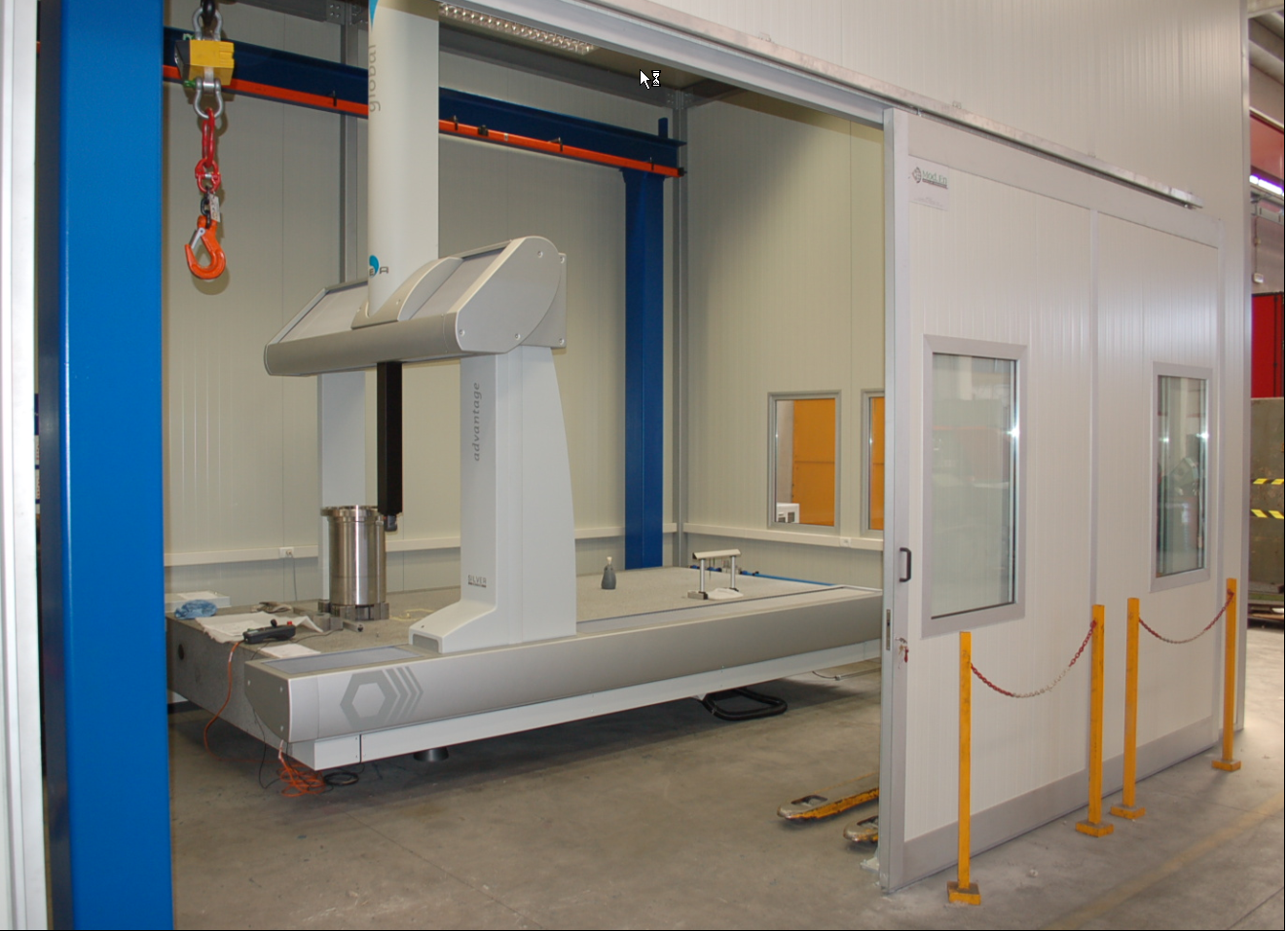

No.1 three-dimensional measuring machine DEA


air-conditioned cab 7000 mm x 5000 mm x 4900 mm
calibration sphere
head TESASTAR SM and continuous scanning LEITZ LSP-X1
measurement software PCDMIS CAD++
probe for tool change with 3 positions including 3 plates and probe kit
extension kit 50/100/200 TKJ/TKJ
Macchina_tridimensionale
